Walk into any electrical shop in India and ask for a distribution board. The first question you will be asked is: single-phase or three-phase? That one question decides whether you need an SPN distribution board or a VTPN DB. Most homeowners, and even some first-time electricians, do not know the difference.

If you’re wiring your brand new 2BHK home, enhancing the electrical panel in commercial offices, or establishing distribution for factory floors, understanding the distinction between a VTPN DB and an SPN distribution board can save time, money, and the potential for dangers to your safety.

At Elecload India, we stock a complete range of distribution boards from trusted brands like Siemens, Legrand, Hager, IndoAsian, Schneider Electric, and L&T. This guide is built on real product knowledge and practical electrical experience to help you make the right choice in 2026.

What is a Distribution Board and Why Does It Matter?

A distribution board, commonly referred to as a DB box or MCB box, is the primary element for any electrical system. It receives the main power supply and divides it into separate circuits, each protected by circuit breakers. Every fan, light, socket, AC, and geyser in your office or home is connected to a specific circuit that is connected to the distribution board.

The kind and quality of distribution panel that you choose directly affects the security, performance, and capacity of your electrical system. A bad choice could lead to frequent tripping, insufficient safety, or a system not able to meet demands of the load as they grow.Distribution boards in India are broadly classified based on the type of supply they handle: single phase or three phase. Within these categories, you have SPN, TPN, VTPN, Flexi Row, Phase Segregated, and more. For this guide, we are focusing on the two most commonly confused types: SPN distribution board and VTPN DB.

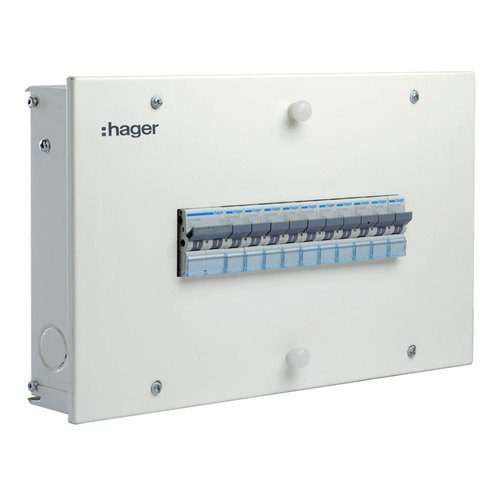

What is an SPN Distribution Board?

SPN full form: Single Pole and Neutral Distribution Board

An SPN distribution board is designed for single-phase electrical supply. In a single-phase system, power is delivered through one live wire and one neutral wire. The SPN DB manages this supply and distributes it across multiple individual circuits inside the home or office.

Inside an SPN distribution board, you will find a main incomer, typically an MCB or an RCCB, followed by individual outgoing MCBs for each circuit. Each MCB is a single-pole device that controls one live wire per circuit.

Where SPN Distribution Boards Are Used

SPN distribution boards are the most commonly installed DB type in Indian homes. Virtually every apartment, independent house, studio, shop, and small office running on a single phase connection uses an SPN DB.

Standard applications include bedroom lighting and fan circuits, kitchen power circuits, living room socket outlets, bathroom geyser circuits, and small AC units on a single-phase supply.

SPN boards are available in 4-way, 6-way, 8-way, 10-way, 12-way, and higher configurations, each “way” referring to the number of outgoing MCB slots available—an 8-way SPN DB, for example, can accommodate 8 individual MCBs for 8 separate circuits.

Brands such as Siemens, Hager, Legrand and IndoAsian provide SPN boards in single-door and SPN double door DB configurations. The double door option provides more space for cable connections and is a preferred choice for tidy professional installations.

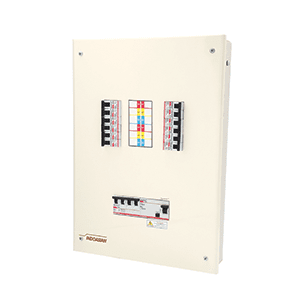

What is a VTPN DB?

VTPN full form: Vertical Triple Pole and Neutral Distribution Board

A VTPN DB is a three-phase distribution board with a vertical internal bus bar arrangement. The “V” in VTPN stands for Vertical, which refers to how the three-phase busbars are oriented inside the board, running top to bottom rather than horizontally.

A standard TPN DB (Triple Pole and Neutral) handles three-phase supply, but a VTPN DB specifically uses a vertical busbar design. This vertical arrangement allows the outgoing MCBs to tap from different phases in an organised, sequential pattern, giving better phase balancing across the circuits within the panel.

How VTPN DB Works

In a VTPN DB, the three phases (R, Y, B Red, Yellow, Blue) and the neutral are arranged vertically as busbars running through the board. Outgoing MCBs are installed in rows, with each row feeding from a specific phase. This design makes it easy to distribute the total load evenly across all three phases, a practice called load balancing, which is critical for the efficient and safe operation of any three-phase installation.

Where VTPN DB is Used

VTPN DBs are used wherever a three-phase supply is available, and a large number of circuits need to be organised with proper phase distribution. Common applications include:

Residential complexes and apartment common areas where lighting, lifts, and pumps run on three phase supply. Commercial buildings and office floors where multiple split ACs, UPS systems, and power sockets need organised three-phase distribution. Industrial shopfloors where machines, motors, and equipment are fed from a single VTPN panel. Large villas and bungalows with three-phase connections and high electrical loads.

The vertical busbar design of the VTPN DB makes it especially practical in installations where space is a consideration and where neat, phase-wise segregation of circuits is important.

VTPN DB vs SPN Distribution Board: Head to Head Comparison

VTPN DB vs SPN Distribution Board: Complete Comparison
Feature	SPN Distribution Board	VTPN DB
Full Form	Single Pole and Neutral	Vertical Triple Pole and Neutral
Supply Type	Single Phase	Three Phase
Number of Live Wires	1 Live + 1 Neutral	3 Live (R, Y, B) + 1 Neutral
MCB Type Used	SP (Single Pole) MCBs	SP or TP MCBs per circuit
Phase Balancing	Not applicable	Yes — essential and achievable
Busbar Design	Single horizontal busbar	Vertical three phase busbar
Typical Use	Homes, small offices, shops	Commercial, industrial, large residential
Load Capacity	Limited to single phase load	Handles large, diverse multi circuit loads
Common Way Configurations	4 to 18 way	4 to 36 way and above
Door Options	Single door, double door	Single door, double door, acrylic door
Top Brands	Siemens, Hager, Legrand, IndoAsian	Siemens, Legrand, Hager, Schneider, IndoAsian
Recommended For	Apartments, homes, shops	Offices, factories, large buildings

Key Technical Differences You Must Understand

Phase Count and Wiring

This is the most fundamental difference. An SPN distribution board handles one phase, one live conductor and one neutral. A VTPN DB handles three phases: three live conductors (R phase, Y phase, B phase) and one common neutral.

If your premises have a single phase meter connection from the electricity board, you need an SPN DB. If you have a three phase connection, you need a TPN or VTPN DB depending on your load requirements and wiring layout preferences.

Busbar Architecture

In an SPN DB, a single horizontal copper busbar runs through the board. All outgoing MCBs connect to this one busbar, drawing from the single phase.In a VTPN DB, three separate phase busbars run vertically through the board. Outgoing MCBs are connected alternately or in groups to R, Y, and B phase, ensuring loads are spread across all three phases rather than concentrated on one.

Circuit Protection Devices

Both types of boards utilize MCBs for short and overload circuit protection on circuits that are individually. However the VTPN DB often accommodates TP (Triple Pole) 3 phase MCBs motor circuits as well as SP MCBs that are designed for single-phase sub circuits.

For earth leakage and shock protection on the receiver, both boards can accommodate an RCCB or an RCBO breaker. Checking the RCCB price and ELCB price before finalising your panel design helps you budget accurately for complete protection.

Load Capacity and Expandability

An SPN DB is limited to the total load that a single phase supply can carry typically up to 63A on the main incomer in residential applications. A VTPN DB can handle far greater total loads because the load is shared across three phases, with each phase independently capable of carrying its rated current.

For a large home with multiple heavy appliances, or for commercial and industrial applications, the VTPN DB offers significantly better scalability.

Which Distribution Board Should You Choose in 2026?

Choose an SPN Distribution Board if:

Your home or shop has a single phase electricity connection from the local distribution company. You are wiring a standard 1BHK, 2BHK, or 3BHK apartment. Your total electrical load is manageable within a single phase supply. You need a straightforward, cost effective panel that is easy to install and maintain. You want a neat, compact distribution board for a residential setup.

Choose a VTPN DB if:

Your premises have a three phase electricity meter connection. You are designing electrical panels for commercial offices, retail showrooms, or industrial facilities. Your installation includes three phase motors, large air conditioning systems, industrial machinery, or high demand electrical equipment. You need to distribute load across three phases for better energy efficiency and to avoid overloading any single phase. You are working on a large residential project: a villa, a large bungalow, or a multi unit residential complex.

Important Installation Considerations for Both Board Types

Regardless of whether you choose an SPN or VTPN DB, the quality of the board and the correctness of the installation are non negotiable.

Always use ISI marked distribution boards that comply with IS 8623. Low quality boards without certification are a fire and safety risk that no price saving can justify.

Make sure that the inbound MCB or RCCB rating is in line with the authorized charge from your electricity board. Oversizing the incomer can be as difficult as undersizing it. A properly rated incomer will ensure that the protection devices function according to the specifications.The wiring entering and leaving your DB box should use properly sized cables rated for the current they carry. Using undersized cables creates heat, degrades insulation, and can cause fires. PVC conduits protect cable routes inside walls and ceilings, and should always be used in concealed wiring installations.

Label every outgoing circuit clearly on the DB box. A well labelled distribution board saves enormous time during maintenance and fault finding. Use DB labels or engraved blanks available as part of the DB accessories range.

Install your distribution board in a dust free, dry, ventilated location that is accessible for maintenance but secure from unauthorised access, particularly in homes with children. For home use, one way switches controlling individual room circuits are typically wired from the circuits originating at the SPN DB.

Top Brands for Distribution Boards Available at Elecload India

Elecload India, founded by Bhavin Joshi and based at 64 Sunrays Shopping Centre, Kandivali West, Mumbai, has been serving electricians, contractors, and homeowners across India since 2019. All distribution boards stocked at Elecload India are 100% genuine, BIS certified where applicable, and come with full manufacturer warranty.

Siemens distribution boards are among the most widely specified in Indian commercial and residential projects. Known for robust build quality, precise MCB compatibility, and long term reliability, Siemens DBs are a safe first choice for both SPN and three phase installations.

Hager offers the Novello and Novello Plus series of distribution boards, sleek, double door designs that are BIS certified and made in India. Hager DBs are popular in premium residential and commercial projects where aesthetics and reliability both matter.

Legrand brings the Ekinox3 series, designed to be Mivan construction compatible and built with thick sheet construction for extreme durability. Legrand DBs are widely used in large residential complexes and commercial buildings.

IndoAsian distribution boards offer an excellent combination of quality and competitive pricing, making them the preferred choice for mid range residential and commercial projects across India.

Schneider Electric Acti9 and PRAGMA series distribution boards are the benchmark for premium commercial and industrial applications, precise, well engineered, and widely supported.

Shop the complete range of SPN, TPN, and VTPN DB options from all these brands at Elecload India with competitive pricing, manufacturer warranty, and pan India delivery.

Conclusion

Choosing between a VTPN DB and an SPN distribution board comes down to one fundamental question: what type of electrical supply does your premises have?If you are on single phase supply which covers the majority of Indian homes and small commercial establishments an SPN distribution board is the correct and most practical choice. It is cost effective, widely available, easy to maintain, and perfectly suited for residential and small commercial wiring requirements.

If you are on a three phase supply which applies to large homes, commercial buildings, offices, and industrial facilities , a VTPN DB gives you the phase balancing, load distribution, and circuit organisation that a three phase installation demands. The vertical busbar design makes it the preferred choice over standard TPN layouts where organised multi phase distribution matters. In both cases, the quality of the board, the correctness of installation, and the proper selection of protective devices MCBs, RCCBs, and RCBO breakers determine how safe and reliable your electrical installation will be for years to come.

Browse the full range of distribution boards at Elecload India and get genuine products from India’s most trusted brands delivered to your door.

Shop Distribution Boards at Elecload India →

Frequently Asked Questions

Q1. What is the full form of VTPN DB?

VTPN stands for Vertical Triple Pole and Neutral. A VTPN DB is a three phase distribution board where the R, Y, and B phase busbars are arranged vertically inside the enclosure. This vertical design enables better phase balancing and neater circuit organisation compared to horizontal busbar arrangements in standard TPN boards.

Q2. What is the full form of SPN in an SPN distribution board?

SPN stands for Single Pole and Neutral. An SPN distribution board is designed for single phase supply systems where one live conductor and one neutral conductor serve all the outgoing circuits. It is the most commonly used DB type in Indian homes and small commercial establishments.

Q3. Can I use a VTPN DB for a single phase connection?

No. A VTPN DB is designed specifically for three phase electrical supply. Installing it on a single phase connection would mean only one of the three phase busbars carries power, while the other two remain unused. This is wasteful and impractical. For single phase connections, always choose an SPN distribution board.

Q4. What is the difference between TPN and VTPN distribution boards?

Both TPN and VTPN are three phase distribution boards. The key difference is the busbar orientation. In a standard TPN DB, the phase busbars may be arranged horizontally. In a VTPN DB, the three phase busbars run vertically through the board, enabling sequential and balanced tapping of circuits across phases. The VTPN design is generally preferred in installations where load balancing and neat circuit segregation are priorities.

Q5. How many ways do I need in my SPN distribution board?

This depends on the number of individual circuits in your home or office. A standard 2BHK apartment in India typically requires 8 to 12 ways covering circuits for bedrooms, living room, kitchen, bathroom geyser, and AC units. A 3BHK home may need 12 to 16 ways. Always plan for at least 2 to 4 spare ways for future expansion when selecting your SPN board.

Q6. Which brands of VTPN DB does Elecload India stock?

Elecload India stocks VTPN DB options from Siemens, Legrand, Hager, IndoAsian, and Schneider Electric. All products are 100% genuine, BIS certified where applicable, and available with manufacturer warranty. You can browse the full range, compare specifications, and order online with fast delivery across India at elecload.com.

Q7. Is an RCCB necessary inside a distribution board?

Yes, strongly recommended. An RCCB at the incomer of your distribution board provides earth leakage protection for the entire installation. It trips within 20 to 40 milliseconds when it detects leakage current fast enough to prevent a fatal electric shock. For individual circuit protection that combines earth leakage with overload protection, consider using an RCBO breaker on each outgoing circuit instead of a standalone MCB. Check the latest RCCB price at Elecload India before finalising your panel design.

Q8. What is the difference between a single door and double door distribution board?

A single door DB has one front panel door providing access to the MCBs and wiring. A double door DB has an outer door and an inner transparent or solid door; the outer door conceals the entire panel, while the inner door provides access to the MCBs without exposing the live busbars and wiring. Double door DBs offer better protection, a neater appearance, and are preferred in homes with children and in commercial spaces where aesthetics matter.

Q9. Can I install a distribution board myself?

Electrical work including distribution board installation must be performed by a qualified licensed electrician. Incorrect installation of a DB box can result in electric shock, fire, or long term damage to your appliances and wiring. Always engage a competent electrician for DB installation, and ensure the installation complies with IS 732 the Indian standard for electrical wiring.

Q10. Where can I buy genuine SPN and VTPN distribution boards online in India?

You can shop for genuine SPN, TPN, and VTPN DB options from brands like Siemens, Hager, Legrand, IndoAsian, and Schneider Electric at Elecload India elecload.com. Established in 2019 and based in Mumbai, Elecload India is a trusted online electrical store offering 100% genuine products, manufacturer warranty, secure online payment, and fast delivery across India. Visit elecload.com or call 9321025013 for product queries and bulk pricing.
